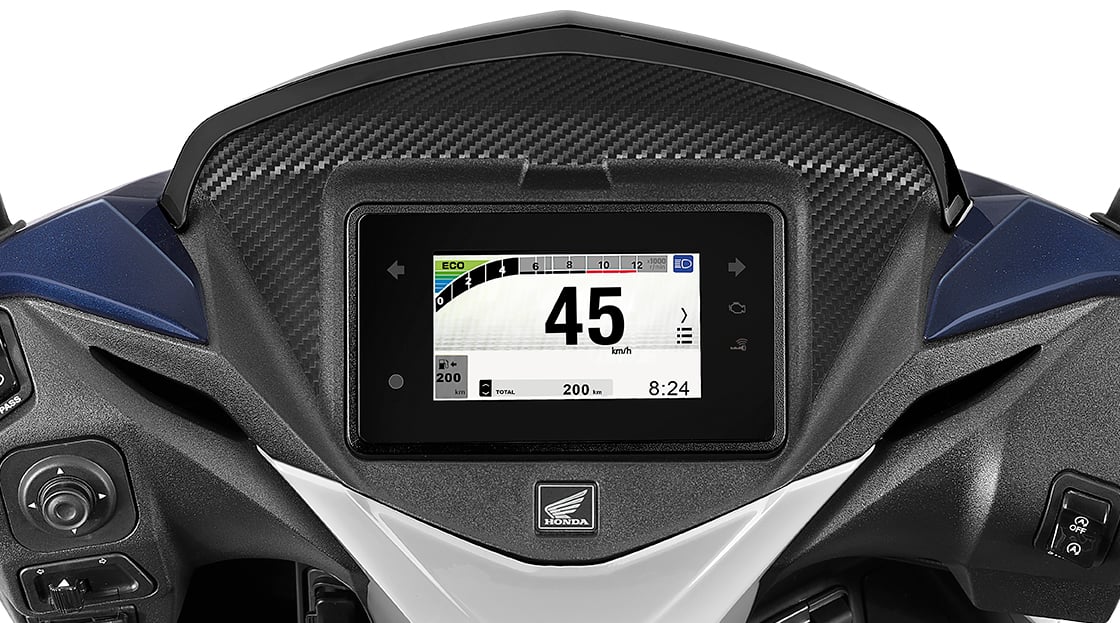

TFT Screen Display
Advanced and interactive, the TFT meter provides Live mileage and average fuel efficiency, and range (distance to empty), keeping you always informed.

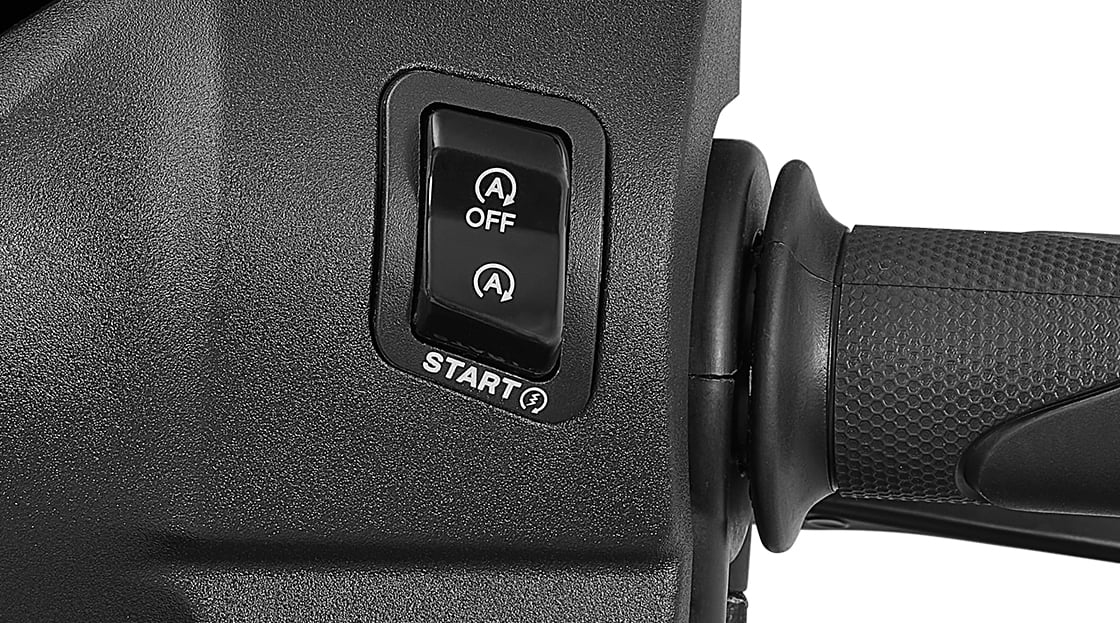

Advanced Idling Stop System
Advanced Idling Stop System Engine automatically comes to a stop whenever the Dio 125 is under 21kmph, saving extra fuel in heavy traffic
PGM-FI Technology
Our sensor-based PGM-FI System constantly injects optimum fuel with air for efficient combustion, delivering consistent power output and improved mileage.

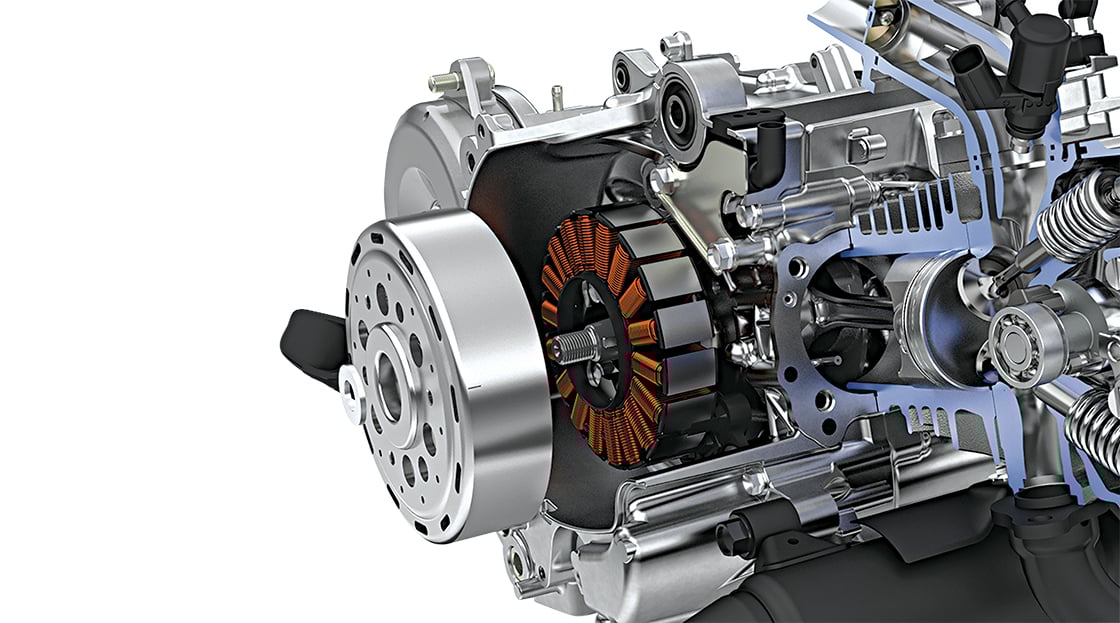

Powerful 125cc Engine
Top-tier power and acceleration to make rides exciting

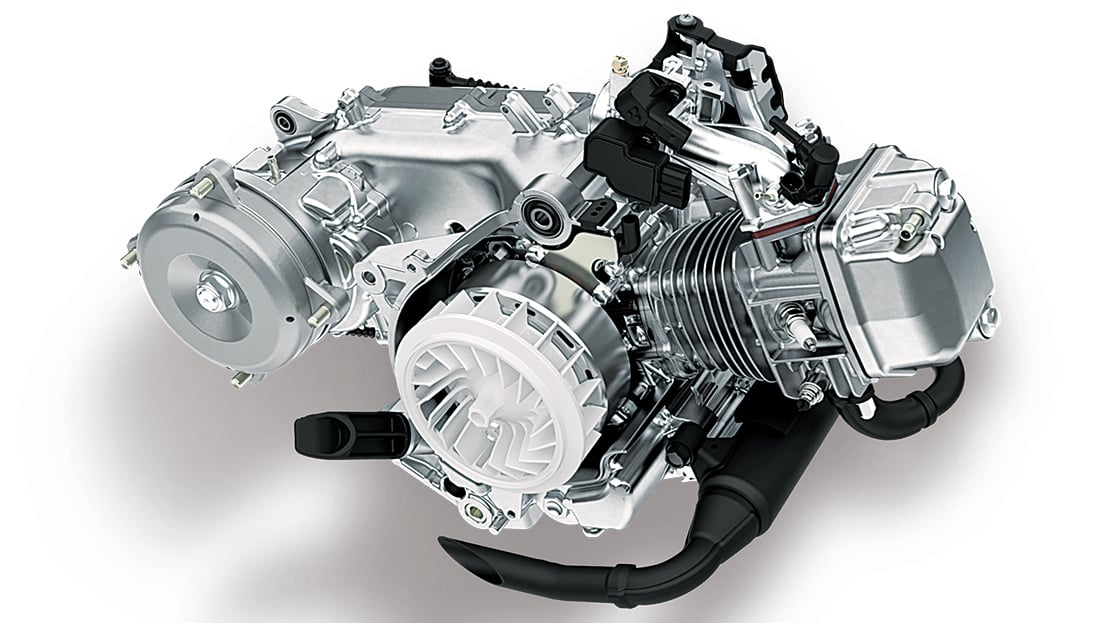

Silent Start with ACG
The ACG Starter provides a smooth, silent start every time, and reduces engine maintenance
Comfort

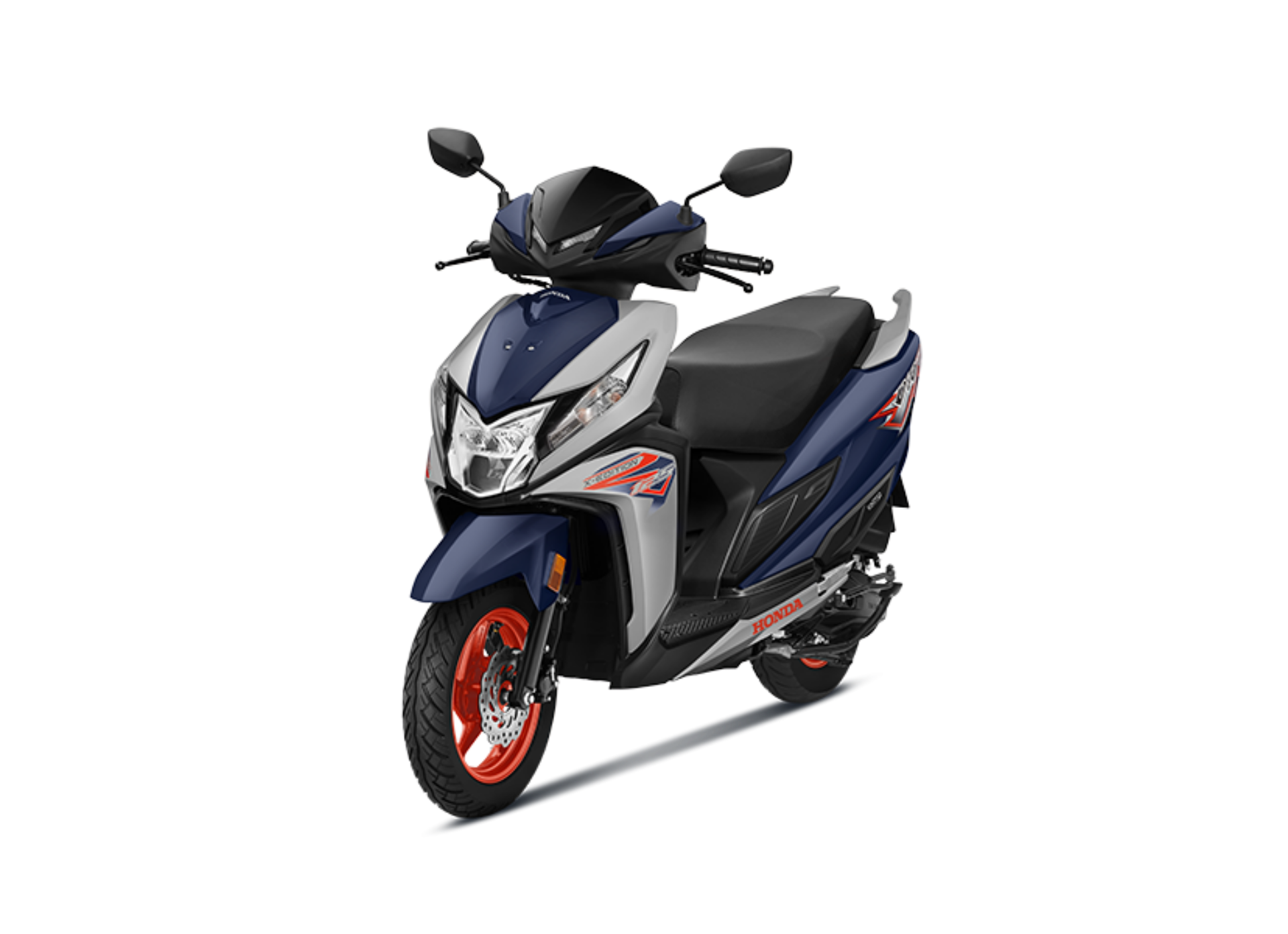

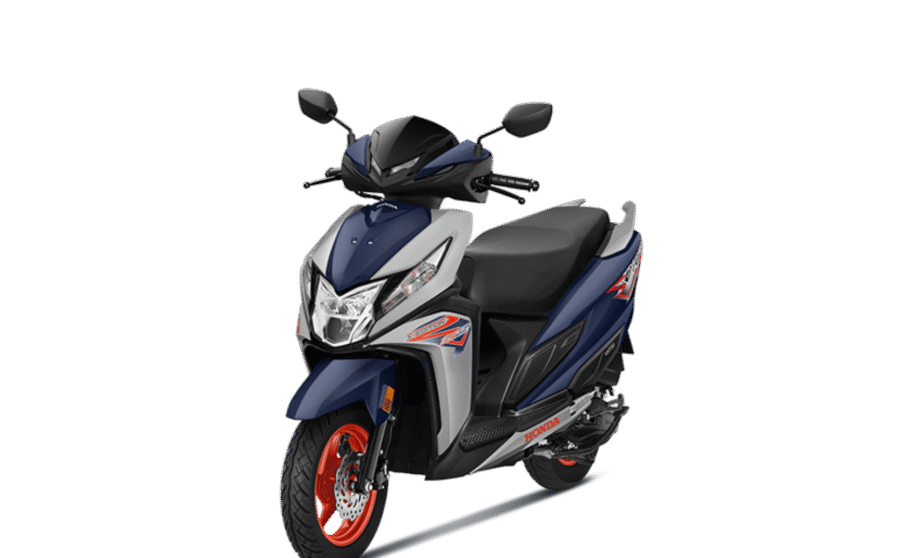

Honda Dio 125 X Edition is powered by 123.92cc BS6 engine which develops a power of 8.16 bhp and a torque of 10.4 Nm. With front disc and rear drum brakes, Honda Dio 125 X Edition comes up with combined braking system of both wheels. This Dio 125 X Edition scooter weighs 105 kg and has a fuel tank capacity of 5.3 liters.
Ex - showroom Price: ₹92502
Body Dimensions
Length: 1830 mm
Width: 707 mm
Height: 1172 mm
Wheel Base: 1260 mm
Ground Clearance: 171 mm
Kerb Weight: 105 kg
Seat Length: 708 mm
Fuel Tank Capacity: 5.3 L
Engine
Type: 4 stroke, SI Engine
Displacement: 123.92 cc
Max Engine Output: 6.11 kW @ 6500 rpm
Fuel System: PGM-FI
Max Torque: 10.5 N-m @ 5000 rpm
Bore X Stroke: 50.000 x 63.113 (mm)
Compression Ratio: 10.0:1
Starting Method: Self
Air Filter Type: Viscous Paper Filter
Transmission
Clutch Type: Automatic Centrifugal Clutch Dry Type
Tyres & Brakes
Tyre Size & Type: (Front)90/90-12 54J Tubeless
Tyre Size & Type: (Rear)90/100-10 53J
Brake Type: (Front)Disc- 190 mm
Brake Type: (Rear)Drum – 130 mm
Frame & Suspension
Frame Type: Underbone
Front Suspension: Telescopic
Rear Suspension: 3-Step Adjustable Spring Loaded Hydraulic
Electricals
Battery: 12 V, 5.0 Ah
Head Lamp: LED
